扩展和 Bootsteps¶

Extensions and Bootsteps

自定义消息消费者¶

Custom Message Consumers

中文

你可能希望嵌入自定义的 Kombu 消费者（Consumer）来手动处理消息。

为此，Celery 提供了一个特殊的 ConsumerStep bootstep 类，你只需定义 get_consumers 方法。该方法必须返回一个 kombu.Consumer 对象的列表，这些消费者将在连接建立时启动：

from celery import Celery
from celery import bootsteps
from kombu import Consumer, Exchange, Queue

my_queue = Queue('custom', Exchange('custom'), 'routing_key')

app = Celery(broker='amqp://')


class MyConsumerStep(bootsteps.ConsumerStep):

    def get_consumers(self, channel):
        return [Consumer(channel,
                        queues=[my_queue],
                        callbacks=[self.handle_message],
                        accept=['json'])]

    def handle_message(self, body, message):
        print('收到消息: {0!r}'.format(body))
        message.ack()
app.steps['consumer'].add(MyConsumerStep)

def send_me_a_message(who, producer=None):
    with app.producer_or_acquire(producer) as producer:
        producer.publish(
            {'hello': who},
            serializer='json',
            exchange=my_queue.exchange,
            routing_key='routing_key',
            declare=[my_queue],
            retry=True,
        )

if __name__ == '__main__':
    send_me_a_message('world!')

备注

Kombu Consumer 支持两种不同的消息回调分发机制。第一种是 callbacks 参数，它接受一个形如 (body, message) 的回调函数列表；第二种是 on_message 参数，它接受一个形如 (message,) 的单个回调函数。后者不会自动对消息进行解码与反序列化。

def get_consumers(self, channel):
    return [Consumer(channel, queues=[my_queue],
                    on_message=self.on_message)]


def on_message(self, message):
    payload = message.decode()
    print(
        '收到消息: {0!r} {props!r} rawlen={s}'.format(
        payload, props=message.properties, s=len(message.body),
    ))
    message.ack()

英文

You may want to embed custom Kombu consumers to manually process your messages.

For that purpose a special ConsumerStep bootstep class exists, where you only need to define the get_consumers method, that must return a list of kombu.Consumer objects to start whenever the connection is established:

from celery import Celery
from celery import bootsteps
from kombu import Consumer, Exchange, Queue

my_queue = Queue('custom', Exchange('custom'), 'routing_key')

app = Celery(broker='amqp://')


class MyConsumerStep(bootsteps.ConsumerStep):

    def get_consumers(self, channel):
        return [Consumer(channel,
                        queues=[my_queue],
                        callbacks=[self.handle_message],
                        accept=['json'])]

    def handle_message(self, body, message):
        print('Received message: {0!r}'.format(body))
        message.ack()
app.steps['consumer'].add(MyConsumerStep)

def send_me_a_message(who, producer=None):
    with app.producer_or_acquire(producer) as producer:
        producer.publish(
            {'hello': who},
            serializer='json',
            exchange=my_queue.exchange,
            routing_key='routing_key',
            declare=[my_queue],
            retry=True,
        )

if __name__ == '__main__':
    send_me_a_message('world!')

备注

Kombu Consumers can take use of two different message callback dispatching mechanisms. The first one is the callbacks argument that accepts a list of callbacks with a (body, message) signature, the second one is the on_message argument that takes a single callback with a (message,) signature. The latter won't automatically decode and deserialize the payload.

def get_consumers(self, channel):
    return [Consumer(channel, queues=[my_queue],
                    on_message=self.on_message)]


def on_message(self, message):
    payload = message.decode()
    print(
        'Received message: {0!r} {props!r} rawlen={s}'.format(
        payload, props=message.properties, s=len(message.body),
    ))
    message.ack()

蓝图¶

Blueprints

中文

Bootsteps 是一种为 worker 添加自定义功能的机制。一个 bootstep 是一个自定义类，它定义了一组钩子方法，用于在 worker 启动过程的不同阶段执行自定义操作。每个 bootstep 都属于某个 blueprint，worker 当前定义了两个 blueprint：Worker 和 Consumer

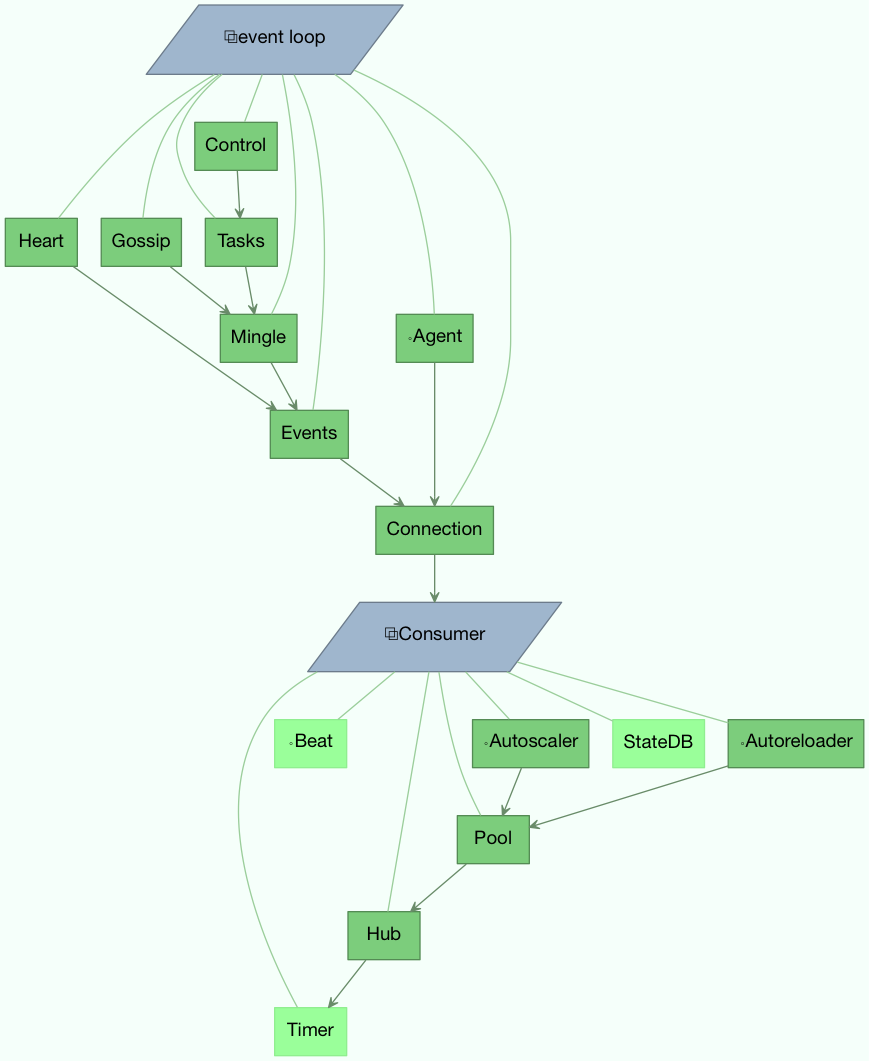

图 A： Worker 和 Consumer blueprint 中的 Bootsteps。从下往上，Worker blueprint 中的第一个步骤是 Timer，最后一个步骤是启动 Consumer blueprint，该 blueprint 将建立与 broker 的连接并开始消费消息。

英文

Bootsteps is a technique to add functionality to the workers. A bootstep is a custom class that defines hooks to do custom actions at different stages in the worker. Every bootstep belongs to a blueprint, and the worker currently defines two blueprints: Worker, and Consumer

Figure A: Bootsteps in the Worker and Consumer blueprints. Starting: from the bottom up the first step in the worker blueprint is the Timer, and the last step is to start the Consumer blueprint, that then establishes the broker connection and starts consuming messages.

Worker¶

Worker

中文

Worker 是第一个启动的 blueprint，它会启动主要组件，如事件循环（event loop）、处理进程池（processing pool）、以及用于处理 ETA 任务和其他定时事件的 Timer。

当 worker 完全启动后，会继续启动 Consumer blueprint，它负责设置任务的执行方式、连接 broker，并启动消息消费者。

WorkController 是 worker 的核心实现类，它包含多个方法和属性，可供自定义 bootstep 使用。

英文

The Worker is the first blueprint to start, and with it starts major components like the event loop, processing pool, and the timer used for ETA tasks and other timed events.

When the worker is fully started it continues with the Consumer blueprint, that sets up how tasks are executed, connects to the broker and starts the message consumers.

The WorkController is the core worker implementation, and contains several methods and attributes that you can use in your bootstep.

属性¶

Attributes

中文

app¶: 当前的 app 实例。

hostname¶: Worker 的节点名称（例如：worker1@example.com）

blueprint¶: 这是该 worker 的 Blueprint 对象。

hub¶

事件循环对象（Hub）。你可以使用它在事件循环中注册回调。

仅在支持异步 I/O 的传输方式中可用（如 amqp、redis），此时应设置 worker.use_eventloop 属性。

要在自定义的 worker bootstep 中使用该属性，你的 bootstep 必须依赖 Hub bootstep：

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Hub'}

pool¶

当前使用的进程 / eventlet / gevent / 线程池。参见 celery.concurrency.base.BasePool。

要在自定义的 worker bootstep 中使用该属性，你的 bootstep 必须依赖 Pool bootstep：

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Pool'}

timer¶

用于调度函数的 Timer 实例。

要在自定义的 worker bootstep 中使用该属性，你的 bootstep 必须依赖 Timer bootstep：

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Timer'}

statedb¶

用于在 worker 重启之间持久化状态的 Database 实例。

仅在启用了 statedb 参数时才会定义该属性。

要在自定义的 worker bootstep 中使用该属性，你的 bootstep 必须依赖 Statedb bootstep：

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Statedb'}

autoscaler¶

用于根据需要自动增加或减少进程数的 Autoscaler 实例。

仅在启用了 autoscale 参数时才会定义该属性。

要在自定义的 worker bootstep 中使用该属性，你的 bootstep 必须依赖 Autoscaler bootstep：

class WorkerStep(bootsteps.StartStopStep):
    requires = ('celery.worker.autoscaler:Autoscaler',)

autoreloader¶

用于在文件系统发生变更时自动重新加载用户代码的 Autoreloader 实例。

仅在启用了 autoreload 参数时才会定义该属性。要在自定义的 worker bootstep 中使用该属性，你的 bootstep 必须依赖 Autoreloader bootstep：

class WorkerStep(bootsteps.StartStopStep):
    requires = ('celery.worker.autoreloader:Autoreloader',)

英文

app: The current app instance.

hostname: The workers node name (e.g., worker1@example.com)

blueprint: This is the worker Blueprint.

hub

Event loop object (Hub). You can use this to register callbacks in the event loop.

This is only supported by async I/O enabled transports (amqp, redis), in which case the worker.use_eventloop attribute should be set.

Your worker bootstep must require the Hub bootstep to use this:

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Hub'}

pool

The current process/eventlet/gevent/thread pool. See celery.concurrency.base.BasePool.

Your worker bootstep must require the Pool bootstep to use this:

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Pool'}

timer

Timer used to schedule functions.

Your worker bootstep must require the Timer bootstep to use this:

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Timer'}

statedb

Database <celery.worker.state.Persistent>` to persist state between worker restarts.

This is only defined if the statedb argument is enabled.

Your worker bootstep must require the Statedb bootstep to use this:

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Statedb'}

autoscaler

Autoscaler used to automatically grow and shrink the number of processes in the pool.

This is only defined if the autoscale argument is enabled.

Your worker bootstep must require the Autoscaler bootstep to use this:

class WorkerStep(bootsteps.StartStopStep):
    requires = ('celery.worker.autoscaler:Autoscaler',)

autoreloader

Autoreloader used to automatically reload use code when the file-system changes.

This is only defined if the autoreload argument is enabled. Your worker bootstep must require the Autoreloader bootstep to use this;

class WorkerStep(bootsteps.StartStopStep):
    requires = ('celery.worker.autoreloader:Autoreloader',)

Worker 启动步骤示例¶

Example worker bootstep

中文

一个示例的 Worker bootstep 如下所示：

from celery import bootsteps

class ExampleWorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Pool'}

    def __init__(self, worker, **kwargs):
        print('在构造 WorkController 实例时调用')
        print('传递给 WorkController 的参数: {0!r}'.format(kwargs))

    def create(self, worker):
        # 此方法可用于将操作方法委托给实现了 ``start`` 和 ``stop`` 的其他对象。
        return self

    def start(self, worker):
        print('在 worker 启动时调用。')

    def stop(self, worker):
        print('在 worker 关闭时调用。')

    def terminate(self, worker):
        print('在 worker 终止时调用。')

每个方法都会将当前的 WorkController 实例作为第一个参数传入。

另一个示例使用 timer 以定期唤醒方式运行：

from celery import bootsteps


class DeadlockDetection(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Timer'}

    def __init__(self, worker, deadlock_timeout=3600):
        self.timeout = deadlock_timeout
        self.requests = []
        self.tref = None

    def start(self, worker):
        # 每 30 秒运行一次。
        self.tref = worker.timer.call_repeatedly(
            30.0, self.detect, (worker,), priority=10,
        )

    def stop(self, worker):
        if self.tref:
            self.tref.cancel()
            self.tref = None

    def detect(self, worker):
        # 更新活跃请求
        for req in worker.active_requests:
            if req.time_start and time() - req.time_start > self.timeout:
                raise SystemExit()

英文

An example Worker bootstep could be:

from celery import bootsteps

class ExampleWorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Pool'}

    def __init__(self, worker, **kwargs):
        print('Called when the WorkController instance is constructed')
        print('Arguments to WorkController: {0!r}'.format(kwargs))

    def create(self, worker):
        # this method can be used to delegate the action methods
        # to another object that implements ``start`` and ``stop``.
        return self

    def start(self, worker):
        print('Called when the worker is started.')

    def stop(self, worker):
        print('Called when the worker shuts down.')

    def terminate(self, worker):
        print('Called when the worker terminates')

Every method is passed the current WorkController instance as the first argument.

Another example could use the timer to wake up at regular intervals:

from celery import bootsteps


class DeadlockDetection(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Timer'}

    def __init__(self, worker, deadlock_timeout=3600):
        self.timeout = deadlock_timeout
        self.requests = []
        self.tref = None

    def start(self, worker):
        # run every 30 seconds.
        self.tref = worker.timer.call_repeatedly(
            30.0, self.detect, (worker,), priority=10,
        )

    def stop(self, worker):
        if self.tref:
            self.tref.cancel()
            self.tref = None

    def detect(self, worker):
        # update active requests
        for req in worker.active_requests:
            if req.time_start and time() - req.time_start > self.timeout:
                raise SystemExit()

自定义任务处理日志¶

Customizing Task Handling Logs

中文

Celery worker 会在任务生命周期的不同事件点向 Python 的日志子系统发出消息。你可以通过覆盖定义于 celery/app/trace.py 中的 LOG_<TYPE> 格式字符串来自定义这些日志消息。

例如：

import celery.app.trace

celery.app.trace.LOG_SUCCESS = "This is a custom message"

所有格式字符串都使用任务名称和任务 ID 进行 % 格式化，其中一些还包含附加字段，如任务返回值或导致任务失败的异常对象。你可以像下面这样在自定义格式字符串中使用这些字段：

import celery.app.trace

celery.app.trace.LOG_REJECTED = "%(name)r 是个被诅咒的任务，我拒绝执行：%(exc)s"

英文

The Celery worker emits messages to the Python logging subsystem for various events throughout the lifecycle of a task. These messages can be customized by overriding the LOG_<TYPE> format strings which are defined in celery/app/trace.py. For example:

import celery.app.trace

celery.app.trace.LOG_SUCCESS = "This is a custom message"

The various format strings are all provided with the task name and ID for % formatting, and some of them receive extra fields like the return value or the exception which caused a task to fail. These fields can be used in custom format strings like so:

import celery.app.trace

celery.app.trace.LOG_REJECTED = "%(name)r is cursed and I won't run it: %(exc)s"

消费者¶

Consumer

中文

Consumer blueprint（消费者蓝图）用于与 broker 建立连接，并在连接断开时自动重启。消费者 bootstep 包括 worker 的心跳机制、远程控制命令接收器，以及任务消费者（最为关键）。

在创建消费者 bootstep 时，必须确保你的 blueprint 支持重启。消费者 bootstep 还定义了一个额外的 shutdown 方法，该方法会在 worker 关闭时调用。

英文

The Consumer blueprint establishes a connection to the broker, and is restarted every time this connection is lost. Consumer bootsteps include the worker heartbeat, the remote control command consumer, and importantly, the task consumer.

When you create consumer bootsteps you must take into account that it must be possible to restart your blueprint. An additional 'shutdown' method is defined for consumer bootsteps, this method is called when the worker is shutdown.

属性¶

Attributes

中文

app¶: 当前的 app 实例。

controller¶: 创建该 consumer 的父级 WorkController 对象。

hostname¶: worker 节点的名称（例如：worker1@example.com）

blueprint¶: 这是 worker 的 Blueprint 实例。

hub¶

事件循环对象（Hub）。你可以使用它在事件循环中注册回调函数。

仅支持启用了异步 I/O 的 transport（如 amqp、redis），此时应设置 worker.use_eventloop 属性。

若要使用此属性，你的 worker bootstep 必须依赖 Hub bootstep：

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Hub'}

connection¶

当前的 broker 连接（kombu.Connection）。

若要使用此属性，consumer bootstep 必须依赖 'Connection' bootstep：

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.connection:Connection'}

event_dispatcher¶

一个 app.events.Dispatcher 对象，可用于发送事件。

若要使用此属性，consumer bootstep 必须依赖 Events bootstep。

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.events:Events'}

gossip¶

用于 worker 间广播通信的对象（Gossip）。

若要使用此属性，consumer bootstep 必须依赖 Gossip bootstep。

class RatelimitStep(bootsteps.StartStopStep):
    """基于集群中 worker 数量对任务进行速率限制。"""
    requires = {'celery.worker.consumer.gossip:Gossip'}

    def start(self, c):
        self.c = c
        self.c.gossip.on.node_join.add(self.on_cluster_size_change)
        self.c.gossip.on.node_leave.add(self.on_cluster_size_change)
        self.c.gossip.on.node_lost.add(self.on_node_lost)
        self.tasks = [
            self.app.tasks['proj.tasks.add']
            self.app.tasks['proj.tasks.mul']
        ]
        self.last_size = None

    def on_cluster_size_change(self, worker):
        cluster_size = len(list(self.c.gossip.state.alive_workers()))
        if cluster_size != self.last_size:
            for task in self.tasks:
                task.rate_limit = 1.0 / cluster_size
            self.c.reset_rate_limits()
            self.last_size = cluster_size

    def on_node_lost(self, worker):
        # 可能由于心跳响应过晚，因此需要尽快再次检查该 worker 是否恢复
        self.c.timer.call_after(10.0, self.on_cluster_size_change)

回调事件

<set> gossip.on.node_join

当有新节点加入集群时触发，提供一个 Worker 实例。
<set> gossip.on.node_leave

当有节点离开集群（关闭）时触发，提供一个 Worker 实例。
<set> gossip.on.node_lost

当集群中的某个 worker 未能按时发送或处理心跳时触发，提供一个 Worker 实例。

这并不一定意味着 worker 真正离线，因此如果默认心跳超时不足以确认，可使用额外的超时机制。

pool¶: 当前使用的进程 / eventlet / gevent / 线程池。参考 celery.concurrency.base.BasePool。

timer¶: 用于调度函数的 Timer。

heart¶

负责发送 worker 事件心跳的对象（Heart）。

若要使用此属性，consumer bootstep 必须依赖 Heart bootstep：

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.heart:Heart'}

task_consumer¶

用于消费任务消息的 kombu.Consumer 对象。

若要使用此属性，consumer bootstep 必须依赖 Tasks bootstep：

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.tasks:Tasks'}

strategies¶

每个已注册的任务类型在此映射中都有一个条目，映射值用于执行该类型任务的接收消息（即任务执行策略）。此映射由 Tasks bootstep 在 consumer 启动时生成：

for name, task in app.tasks.items():
    strategies[name] = task.start_strategy(app, consumer)
    task.__trace__ = celery.app.trace.build_tracer(
        name, task, loader, hostname
    )

若要使用此属性，consumer bootstep 必须依赖 Tasks bootstep：

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.tasks:Tasks'}

task_buckets¶

一个 defaultdict，用于按任务类型查找其速率限制器。此 dict 中的值可以是 None（表示无限制），也可以是实现了 consume(tokens) 和 expected_time(tokens) 方法的 TokenBucket 实例。

TokenBucket 实现了令牌桶算法，但只要符合上述接口和方法定义，也可以使用其他算法。

qos¶

QoS 对象，用于修改当前任务通道的 prefetch_count 值：

# 在下一个周期增加
consumer.qos.increment_eventually(1)
# 在下一个周期减少
consumer.qos.decrement_eventually(1)
consumer.qos.set(10)

英文

app: The current app instance.

controller: The parent WorkController object that created this consumer.

hostname: The workers node name (e.g., worker1@example.com)

blueprint: This is the worker Blueprint.

hub

Event loop object (Hub). You can use this to register callbacks in the event loop.

This is only supported by async I/O enabled transports (amqp, redis), in which case the worker.use_eventloop attribute should be set.

Your worker bootstep must require the Hub bootstep to use this:

class WorkerStep(bootsteps.StartStopStep):
    requires = {'celery.worker.components:Hub'}

connection

The current broker connection (kombu.Connection).

A consumer bootstep must require the 'Connection' bootstep to use this:

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.connection:Connection'}

event_dispatcher

A app.events.Dispatcher object that can be used to send events.

A consumer bootstep must require the Events bootstep to use this.

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.events:Events'}

gossip

Worker to worker broadcast communication (Gossip).

A consumer bootstep must require the Gossip bootstep to use this.

class RatelimitStep(bootsteps.StartStopStep):
    """Rate limit tasks based on the number of workers in the
    cluster."""
    requires = {'celery.worker.consumer.gossip:Gossip'}

    def start(self, c):
        self.c = c
        self.c.gossip.on.node_join.add(self.on_cluster_size_change)
        self.c.gossip.on.node_leave.add(self.on_cluster_size_change)
        self.c.gossip.on.node_lost.add(self.on_node_lost)
        self.tasks = [
            self.app.tasks['proj.tasks.add']
            self.app.tasks['proj.tasks.mul']
        ]
        self.last_size = None

    def on_cluster_size_change(self, worker):
        cluster_size = len(list(self.c.gossip.state.alive_workers()))
        if cluster_size != self.last_size:
            for task in self.tasks:
                task.rate_limit = 1.0 / cluster_size
            self.c.reset_rate_limits()
            self.last_size = cluster_size

    def on_node_lost(self, worker):
        # may have processed heartbeat too late, so wake up soon
        # in order to see if the worker recovered.
        self.c.timer.call_after(10.0, self.on_cluster_size_change)

Callbacks

<set> gossip.on.node_join

Called whenever a new node joins the cluster, providing a Worker instance.
<set> gossip.on.node_leave

Called whenever a new node leaves the cluster (shuts down), providing a Worker instance.
<set> gossip.on.node_lost

Called whenever heartbeat was missed for a worker instance in the cluster (heartbeat not received or processed in time), providing a Worker instance.

This doesn't necessarily mean the worker is actually offline, so use a time out mechanism if the default heartbeat timeout isn't sufficient.

pool: The current process/eventlet/gevent/thread pool. See celery.concurrency.base.BasePool.

timer: Timer <celery.utils.timer2.Schedule used to schedule functions.

heart

Responsible for sending worker event heartbeats (Heart).

Your consumer bootstep must require the Heart bootstep to use this:

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.heart:Heart'}

task_consumer

The kombu.Consumer object used to consume task messages.

Your consumer bootstep must require the Tasks bootstep to use this:

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.tasks:Tasks'}

strategies

Every registered task type has an entry in this mapping, where the value is used to execute an incoming message of this task type (the task execution strategy). This mapping is generated by the Tasks bootstep when the consumer starts:

for name, task in app.tasks.items():
    strategies[name] = task.start_strategy(app, consumer)
    task.__trace__ = celery.app.trace.build_tracer(
        name, task, loader, hostname
    )

Your consumer bootstep must require the Tasks bootstep to use this:

class Step(bootsteps.StartStopStep):
    requires = {'celery.worker.consumer.tasks:Tasks'}

task_buckets

A defaultdict used to look-up the rate limit for a task by type. Entries in this dict may be None (for no limit) or a TokenBucket instance implementing consume(tokens) and expected_time(tokens).

TokenBucket implements the token bucket algorithm, but any algorithm may be used as long as it conforms to the same interface and defines the two methods above.

qos

The QoS object can be used to change the task channels current prefetch_count value:

# increment at next cycle
consumer.qos.increment_eventually(1)
# decrement at next cycle
consumer.qos.decrement_eventually(1)
consumer.qos.set(10)

方法¶

Methods

中文

consumer.reset_rate_limits()¶: 更新所有已注册任务类型的 task_buckets 映射。

consumer.bucket_for_task(type, Bucket=TokenBucket)¶: 使用任务的 task.rate_limit 属性为任务创建速率限制桶。

consumer.add_task_queue(name, exchange=None, exchange_type=None,
routing_key=None, **options):: 添加新的队列以进行消费。此操作将在连接重启后继续生效。

consumer.cancel_task_queue(name)¶: 停止消费指定名称的队列。此操作将在连接重启后继续生效。

apply_eta_task(request)¶: 根据 request.eta 属性调度 ETA 任务以执行。（Request）

英文

consumer.reset_rate_limits(): Updates the task_buckets mapping for all registered task types.

consumer.bucket_for_task(type, Bucket=TokenBucket): Creates rate limit bucket for a task using its task.rate_limit attribute.

consumer.add_task_queue(name, exchange=None, exchange_type=None,
routing_key=None, **options):: Adds new queue to consume from. This will persist on connection restart.

consumer.cancel_task_queue(name): Stop consuming from queue by name. This will persist on connection restart.

apply_eta_task(request): Schedule ETA task to execute based on the request.eta attribute. (Request)

安装启动步骤¶

Installing Bootsteps

中文

app.steps['worker'] 和 app.steps['consumer'] 可被修改以添加新的启动步骤（bootstep）：

>>> app = Celery()
>>> app.steps['worker'].add(MyWorkerStep)  # < 添加类，不实例化
>>> app.steps['consumer'].add(MyConsumerStep)

>>> app.steps['consumer'].update([StepA, StepB])

>>> app.steps['consumer']
{step:proj.StepB{()}, step:proj.MyConsumerStep{()}, step:proj.StepA{()}}

步骤的顺序在此处并不重要，因为最终的执行顺序是由生成的依赖图（Step.requires）决定的。

以下是一个示例步骤，用来演示如何安装 bootstep 以及它们的工作原理。这个步骤会打印一些无用的调试信息。它既可以作为 worker 的 bootstep，也可以作为 consumer 的 bootstep 添加：

from celery import Celery
from celery import bootsteps

class InfoStep(bootsteps.Step):

    def __init__(self, parent, **kwargs):
        # 我们可以在这里以任意方式初始化 Worker/Consumer 对象，
        # 例如设置默认属性等。
        print('{0!r} is in init'.format(parent))

    def start(self, parent):
        # 此步骤将在所有其他 Worker/Consumer 的 bootstep 启动时一同启动。
        print('{0!r} is starting'.format(parent))

    def stop(self, parent):
        # Consumer 每次重启（例如连接丢失）以及关闭时都会调用 stop。
        # Worker 仅在关闭时调用 stop。
        print('{0!r} is stopping'.format(parent))

    def shutdown(self, parent):
        # shutdown 会在 Consumer 关闭时调用，而不会被 Worker 调用。
        print('{0!r} is shutting down'.format(parent))

    app = Celery(broker='amqp://')
    app.steps['worker'].add(InfoStep)
    app.steps['consumer'].add(InfoStep)

使用该步骤启动 worker 时，会产生以下日志输出：

<Worker: w@example.com (initializing)> is in init
<Consumer: w@example.com (initializing)> is in init
[2013-05-29 16:18:20,544: WARNING/MainProcess]
    <Worker: w@example.com (running)> is starting
[2013-05-29 16:18:21,577: WARNING/MainProcess]
    <Consumer: w@example.com (running)> is starting
<Consumer: w@example.com (closing)> is stopping
<Worker: w@example.com (closing)> is stopping
<Consumer: w@example.com (terminating)> is shutting down

这些 print 语句会在 worker 初始化后被重定向到日志系统，因此 "is starting" 的日志是带有时间戳的。你可能会注意到在 shutdown 时不再输出这些信息，这是因为 stop 和 shutdown 方法是在 信号处理器 中调用的，而在信号处理器中使用日志系统是不安全的。

使用 Python 的日志模块记录信息并不是可重入的：也就是说你不能在函数执行中断后再次调用它。因此你所编写的 stop 和 shutdown 方法也必须是可重入的。

以 --loglevel=debug 启动 worker 会显示更多有关启动过程的信息：

[2013-05-29 16:18:20,509: DEBUG/MainProcess] | Worker: Preparing bootsteps.
[2013-05-29 16:18:20,511: DEBUG/MainProcess] | Worker: Building graph...
<celery.apps.worker.Worker object at 0x101ad8410> is in init
[2013-05-29 16:18:20,511: DEBUG/MainProcess] | Worker: New boot order:
    {Hub, Pool, Timer, StateDB, Autoscaler, InfoStep, Beat, Consumer}
[2013-05-29 16:18:20,514: DEBUG/MainProcess] | Consumer: Preparing bootsteps.
[2013-05-29 16:18:20,514: DEBUG/MainProcess] | Consumer: Building graph...
<celery.worker.consumer.Consumer object at 0x101c2d8d0> is in init
[2013-05-29 16:18:20,515: DEBUG/MainProcess] | Consumer: New boot order:
    {Connection, Mingle, Events, Gossip, InfoStep, Agent,
    Heart, Control, Tasks, event loop}
[2013-05-29 16:18:20,522: DEBUG/MainProcess] | Worker: Starting Hub
[2013-05-29 16:18:20,522: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:20,522: DEBUG/MainProcess] | Worker: Starting Pool
[2013-05-29 16:18:20,542: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:20,543: DEBUG/MainProcess] | Worker: Starting InfoStep
[2013-05-29 16:18:20,544: WARNING/MainProcess]
    <celery.apps.worker.Worker object at 0x101ad8410> is starting
[2013-05-29 16:18:20,544: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:20,544: DEBUG/MainProcess] | Worker: Starting Consumer
[2013-05-29 16:18:20,544: DEBUG/MainProcess] | Consumer: Starting Connection
[2013-05-29 16:18:20,559: INFO/MainProcess] Connected to amqp://guest@127.0.0.1:5672//
[2013-05-29 16:18:20,560: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:20,560: DEBUG/MainProcess] | Consumer: Starting Mingle
[2013-05-29 16:18:20,560: INFO/MainProcess] mingle: searching for neighbors
[2013-05-29 16:18:21,570: INFO/MainProcess] mingle: no one here
[2013-05-29 16:18:21,570: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,571: DEBUG/MainProcess] | Consumer: Starting Events
[2013-05-29 16:18:21,572: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,572: DEBUG/MainProcess] | Consumer: Starting Gossip
[2013-05-29 16:18:21,577: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,577: DEBUG/MainProcess] | Consumer: Starting InfoStep
[2013-05-29 16:18:21,577: WARNING/MainProcess]
    <celery.worker.consumer.Consumer object at 0x101c2d8d0> is starting
[2013-05-29 16:18:21,578: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,578: DEBUG/MainProcess] | Consumer: Starting Heart
[2013-05-29 16:18:21,579: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,579: DEBUG/MainProcess] | Consumer: Starting Control
[2013-05-29 16:18:21,583: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,583: DEBUG/MainProcess] | Consumer: Starting Tasks
[2013-05-29 16:18:21,606: DEBUG/MainProcess] basic.qos: prefetch_count->80
[2013-05-29 16:18:21,606: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,606: DEBUG/MainProcess] | Consumer: Starting event loop
[2013-05-29 16:18:21,608: WARNING/MainProcess] celery@example.com ready.

英文

app.steps['worker'] and app.steps['consumer'] can be modified to add new bootsteps:

>>> app = Celery()
>>> app.steps['worker'].add(MyWorkerStep)  # < add class, don't instantiate
>>> app.steps['consumer'].add(MyConsumerStep)

>>> app.steps['consumer'].update([StepA, StepB])

>>> app.steps['consumer']
{step:proj.StepB{()}, step:proj.MyConsumerStep{()}, step:proj.StepA{()}

The order of steps isn't important here as the order is decided by the resulting dependency graph (Step.requires).

To illustrate how you can install bootsteps and how they work, this is an example step that prints some useless debugging information. It can be added both as a worker and consumer bootstep:

from celery import Celery
from celery import bootsteps

class InfoStep(bootsteps.Step):

    def __init__(self, parent, **kwargs):
        # here we can prepare the Worker/Consumer object
        # in any way we want, set attribute defaults, and so on.
        print('{0!r} is in init'.format(parent))

    def start(self, parent):
        # our step is started together with all other Worker/Consumer
        # bootsteps.
        print('{0!r} is starting'.format(parent))

    def stop(self, parent):
        # the Consumer calls stop every time the consumer is
        # restarted (i.e., connection is lost) and also at shutdown.
        # The Worker will call stop at shutdown only.
        print('{0!r} is stopping'.format(parent))

    def shutdown(self, parent):
        # shutdown is called by the Consumer at shutdown, it's not
        # called by Worker.
        print('{0!r} is shutting down'.format(parent))

    app = Celery(broker='amqp://')
    app.steps['worker'].add(InfoStep)
    app.steps['consumer'].add(InfoStep)

Starting the worker with this step installed will give us the following logs:

<Worker: w@example.com (initializing)> is in init
<Consumer: w@example.com (initializing)> is in init
[2013-05-29 16:18:20,544: WARNING/MainProcess]
    <Worker: w@example.com (running)> is starting
[2013-05-29 16:18:21,577: WARNING/MainProcess]
    <Consumer: w@example.com (running)> is starting
<Consumer: w@example.com (closing)> is stopping
<Worker: w@example.com (closing)> is stopping
<Consumer: w@example.com (terminating)> is shutting down

The print statements will be redirected to the logging subsystem after the worker has been initialized, so the "is starting" lines are time-stamped. You may notice that this does no longer happen at shutdown, this is because the stop and shutdown methods are called inside a signal handler, and it's not safe to use logging inside such a handler. Logging with the Python logging module isn't reentrant: meaning you cannot interrupt the function then call it again later. It's important that the stop and shutdown methods you write is also reentrant.

Starting the worker with --loglevel=debug will show us more information about the boot process:

[2013-05-29 16:18:20,509: DEBUG/MainProcess] | Worker: Preparing bootsteps.
[2013-05-29 16:18:20,511: DEBUG/MainProcess] | Worker: Building graph...
<celery.apps.worker.Worker object at 0x101ad8410> is in init
[2013-05-29 16:18:20,511: DEBUG/MainProcess] | Worker: New boot order:
    {Hub, Pool, Timer, StateDB, Autoscaler, InfoStep, Beat, Consumer}
[2013-05-29 16:18:20,514: DEBUG/MainProcess] | Consumer: Preparing bootsteps.
[2013-05-29 16:18:20,514: DEBUG/MainProcess] | Consumer: Building graph...
<celery.worker.consumer.Consumer object at 0x101c2d8d0> is in init
[2013-05-29 16:18:20,515: DEBUG/MainProcess] | Consumer: New boot order:
    {Connection, Mingle, Events, Gossip, InfoStep, Agent,
    Heart, Control, Tasks, event loop}
[2013-05-29 16:18:20,522: DEBUG/MainProcess] | Worker: Starting Hub
[2013-05-29 16:18:20,522: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:20,522: DEBUG/MainProcess] | Worker: Starting Pool
[2013-05-29 16:18:20,542: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:20,543: DEBUG/MainProcess] | Worker: Starting InfoStep
[2013-05-29 16:18:20,544: WARNING/MainProcess]
    <celery.apps.worker.Worker object at 0x101ad8410> is starting
[2013-05-29 16:18:20,544: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:20,544: DEBUG/MainProcess] | Worker: Starting Consumer
[2013-05-29 16:18:20,544: DEBUG/MainProcess] | Consumer: Starting Connection
[2013-05-29 16:18:20,559: INFO/MainProcess] Connected to amqp://guest@127.0.0.1:5672//
[2013-05-29 16:18:20,560: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:20,560: DEBUG/MainProcess] | Consumer: Starting Mingle
[2013-05-29 16:18:20,560: INFO/MainProcess] mingle: searching for neighbors
[2013-05-29 16:18:21,570: INFO/MainProcess] mingle: no one here
[2013-05-29 16:18:21,570: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,571: DEBUG/MainProcess] | Consumer: Starting Events
[2013-05-29 16:18:21,572: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,572: DEBUG/MainProcess] | Consumer: Starting Gossip
[2013-05-29 16:18:21,577: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,577: DEBUG/MainProcess] | Consumer: Starting InfoStep
[2013-05-29 16:18:21,577: WARNING/MainProcess]
    <celery.worker.consumer.Consumer object at 0x101c2d8d0> is starting
[2013-05-29 16:18:21,578: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,578: DEBUG/MainProcess] | Consumer: Starting Heart
[2013-05-29 16:18:21,579: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,579: DEBUG/MainProcess] | Consumer: Starting Control
[2013-05-29 16:18:21,583: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,583: DEBUG/MainProcess] | Consumer: Starting Tasks
[2013-05-29 16:18:21,606: DEBUG/MainProcess] basic.qos: prefetch_count->80
[2013-05-29 16:18:21,606: DEBUG/MainProcess] ^-- substep ok
[2013-05-29 16:18:21,606: DEBUG/MainProcess] | Consumer: Starting event loop
[2013-05-29 16:18:21,608: WARNING/MainProcess] celery@example.com ready.

命令行程序¶

Command-line programs

添加新的命令行选项¶

Adding new command-line options

特定于命令的选项¶

Command-specific options

中文

你可以通过修改应用实例的 user_options 属性，为 worker、 beat 和 events 命令添加额外的命令行选项。

Celery 命令使用 click 模块解析命令行参数，因此要添加自定义参数，你需要将 click.Option 实例添加到相应的选项集合中。

以下是为 celery worker 命令添加自定义选项的示例：

from celery import Celery
from click import Option

app = Celery(broker='amqp://')

app.user_options['worker'].add(Option(('--enable-my-option',),
                                    is_flag=True,
                                    help='启用自定义选项。'))

所有 bootstep 现在都会以关键字参数的形式在 Bootstep.__init__ 中接收到该参数：

from celery import bootsteps

class MyBootstep(bootsteps.Step):

    def __init__(self, parent, enable_my_option=False, **options):
        super().__init__(parent, **options)
        if enable_my_option:
            party()

app.steps['worker'].add(MyBootstep)

英文

You can add additional command-line options to the worker, beat, and events commands by modifying the user_options attribute of the application instance.

Celery commands uses the click module to parse command-line arguments, and so to add custom arguments you need to add click.Option instances to the relevant set.

Example adding a custom option to the celery worker command:

from celery import Celery
from click import Option

app = Celery(broker='amqp://')

app.user_options['worker'].add(Option(('--enable-my-option',),
                                    is_flag=True,
                                    help='Enable custom option.'))

All bootsteps will now receive this argument as a keyword argument to Bootstep.__init__:

from celery import bootsteps

class MyBootstep(bootsteps.Step):

    def __init__(self, parent, enable_my_option=False, **options):
        super().__init__(parent, **options)
        if enable_my_option:
            party()

app.steps['worker'].add(MyBootstep)

预加载选项¶

Preload options

中文

celery 总控命令支持“预加载选项”（preload options）的概念。这些是会传递给所有子命令的特殊选项。

你可以添加新的预加载选项，例如用于指定配置模板：

from celery import Celery
from celery import signals
from click import Option

app = Celery()

app.user_options['preload'].add(Option(('-Z', '--template'),
                                    default='default',
                                    help='要使用的配置模板。'))

@signals.user_preload_options.connect
def on_preload_parsed(options, **kwargs):
    use_template(options['template'])

英文

The celery umbrella command supports the concept of 'preload options'. These are special options passed to all sub-commands.

You can add new preload options, for example to specify a configuration template:

from celery import Celery
from celery import signals
from click import Option

app = Celery()

app.user_options['preload'].add(Option(('-Z', '--template'),
                                    default='default',
                                    help='Configuration template to use.'))

@signals.user_preload_options.connect
def on_preload_parsed(options, **kwargs):
    use_template(options['template'])

添加新的 celery 子命令¶

Adding new celery sub-commands

中文

可以通过使用 setuptools entry-points 向 celery 总控命令添加新的子命令。

Entry-point 是一种特殊的元数据，可添加到你的软件包的 setup.py 脚本中，安装后可以使用 importlib 模块从系统中读取。

Celery 会识别 celery.commands entry-points 来安装额外的子命令，其中 entry-point 的值必须是一个有效的 click 命令。

这正是 https://pypi.org/project/Flower/ 监控扩展通过在 setup.py 中添加 entry-point 的方式，实现添加 celery flower 命令的方式：

setup(
    name='flower',
    entry_points={
        'celery.commands': [
        'flower = flower.command:flower',
        ],
    }
)

命令定义由等号分隔为两部分，第一部分是子命令的名称（此处为 flower），第二部分是实现该命令的函数的完全限定符号路径：

flower.command:flower

模块路径与属性名称之间应使用冒号分隔，如上所示。

在 flower/command.py 模块中，命令函数可以定义如下：

import click

@click.command()
@click.option('--port', default=8888, type=int, help='Web服务器端口')
@click.option('--debug', is_flag=True)
def flower(port, debug):
    print('运行自定义命令')

英文

New commands can be added to the celery umbrella command by using setuptools entry-points.

Entry-points is special meta-data that can be added to your packages setup.py program, and then after installation, read from the system using the importlib module.

Celery recognizes celery.commands entry-points to install additional sub-commands, where the value of the entry-point must point to a valid click command.

This is how the https://pypi.org/project/Flower/ monitoring extension may add the celery flower command, by adding an entry-point in setup.py:

setup(
    name='flower',
    entry_points={
        'celery.commands': [
        'flower = flower.command:flower',
        ],
    }
)

The command definition is in two parts separated by the equal sign, where the first part is the name of the sub-command (flower), then the second part is the fully qualified symbol path to the function that implements the command:

flower.command:flower

The module path and the name of the attribute should be separated by colon as above.

In the module flower/command.py, the command function may be defined as the following:

import click

@click.command()
@click.option('--port', default=8888, type=int, help='Webserver port')
@click.option('--debug', is_flag=True)
def flower(port, debug):
    print('Running our command')

Worker API¶

Worker API

`Hub` - Worker 异步事件循环¶

Hub - The workers async event loop

supported transports:: amqp, redis

Added in version 3.0.

中文

当使用 amqp 或 redis broker 传输方式时，worker 会使用异步 I/O。最终的目标是让所有传输方式都基于事件循环（event-loop）实现，但这还需要一段时间，因此其他传输方式仍然采用基于线程的解决方案。

hub.add(fd, callback, flags)¶

hub.add_reader(fd, callback, *args)¶

添加在 fd 可读时调用的回调函数。

该回调函数会持续注册，直到显式地使用 hub.remove(fd) 移除，或者由于文件描述符不再有效而被自动丢弃。

注意：任意给定的文件描述符在任意时刻只能注册一个回调函数，因此若第二次调用 add，会移除此前为该文件描述符注册的任何回调。

文件描述符可以是支持 fileno 方法的任何类似文件对象，或是文件描述符的整数编号（int）。

hub.add_writer(fd, callback, *args)¶: 添加在 fd 可写时调用的回调函数。参考上文 hub.add_reader() 的说明。

hub.remove(fd)¶: 从事件循环中移除文件描述符 fd 的所有回调函数。

英文

The worker uses asynchronous I/O when the amqp or redis broker transports are used. The eventual goal is for all transports to use the event-loop, but that will take some time so other transports still use a threading-based solution.

hub.add(fd, callback, flags)

hub.add_reader(fd, callback, *args)

Add callback to be called when fd is readable.

The callback will stay registered until explicitly removed using hub.remove(fd), or the file descriptor is automatically discarded because it's no longer valid.

Note that only one callback can be registered for any given file descriptor at a time, so calling add a second time will remove any callback that was previously registered for that file descriptor.

A file descriptor is any file-like object that supports the fileno method, or it can be the file descriptor number (int).

hub.add_writer(fd, callback, *args): Add callback to be called when fd is writable. See also notes for hub.add_reader() above.

hub.remove(fd): Remove all callbacks for file descriptor fd from the loop.

计时器 - 事件调度¶

Timer - Scheduling events

timer.call_after(secs, callback, args=(), kwargs=(),
priority=0)

timer.call_repeatedly(secs, callback, args=(), kwargs=(),
priority=0)

timer.call_at(eta, callback, args=(), kwargs=(),
priority=0)

扩展 和 Bootsteps¶
